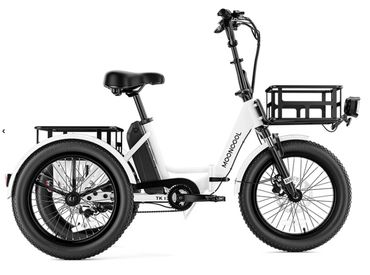

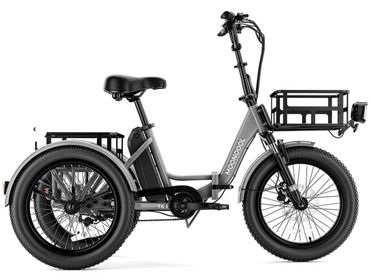

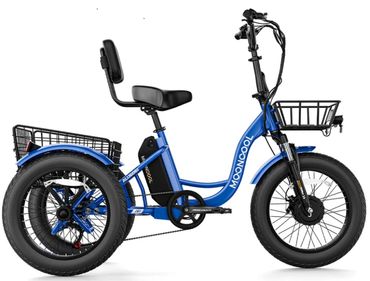

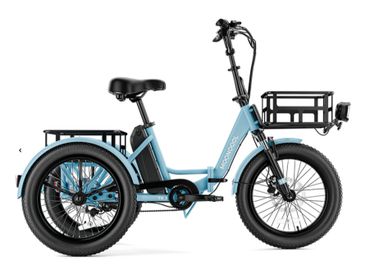

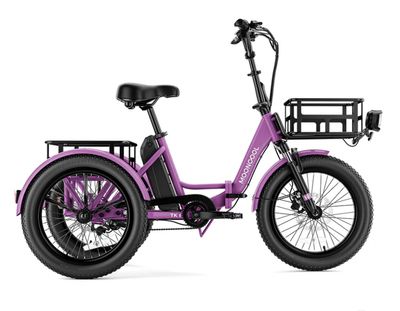

Moon Cool TK1 folding trike

 Specification

• Motor 48V*500W Peak Power 1000W
• Battery 48V*14.5Ah
• Range 35~70 Miles
• Charger 110-240V 54.6V 2A
• Charging Time 6-8 Hours
• Max Safe Speed 16 Mph
• Controller Sine Wave FOC 48V 20amp Peak
• Pedal Sensor 24 Signals Cadence Sensor
• Throttle Twist Throttle
• Front Light Big Led e-Bike Version with Horn Function
• Rear Light 3 Taillight, Brake Highlight Function & Turn Signals Function
•  Weight G.W. 115.7lbs, N.W. 89.9lbs

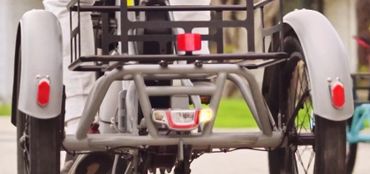

• Frame 6061 Aluminum + Hiten Steel, Folding Structure, Rear Differential Mechanism
• Fork Suspension, Coil Spring Structure, Mechanical Lockout
• Handlebar Alloy, BMX Style, Bar bore 1.25in, Length 25.98in, Rise 4.72in Stem Alloy, 1.13in x 1.25in, Folding, Extension Tube 7in
• Saddle Comfortable Big Vacuum Foaming Seat Seat Post Alloy 1.25in x 19.69in Length
• Chainwheel Alloy Crank 6.69in, Steel Chain Ring 36T Freewheel 18T
• Display Multifunctional G51, LCD Gray Screen
• Brake Hydraulic Disc Brake, Alloy, Rotor 7.09in Brake Level Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function
• Rim Alloy 20 Inch x 30 x 13G x 36H, AV Tire 20" x 3.0 CHAOYANG H5183 Spokes Stainless, 13G
• Parking Brake

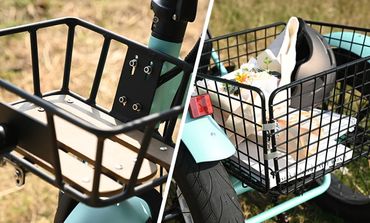

• With Fenders-With Rear Rack-With Front Basket-With Rear Basket
• Load Capacity450 LBS

 Specification

• Motor 48V*500W Peak Power 1000W
• Battery 48V*14.5Ah Range35~70 Miles
• Charger 110-240V 54.6V 2A Charging Time 6-8 Hours
• Max Safe Speed 16 Mph
• Controller Sine Wave FOC 48V 20amp Peak
• Pedal Sensor 24 Signals Cadence Sensor
• Throttle Twist Throttle
•  Front Light Big Led e-Bike Version with Horn Function
• Rear Light 3 Taillight, Brake Highlight Function & Turn Signals Function

Components

•  Weight G.W. 115.7lbs, N.W. 89.9lbs
• Frame 6061 Aluminum + Hiten Steel, Folding Structure, Rear Differential Mechanism
• Fork Suspension, Coil Spring Structure, Mechanical Lockout
• Handlebar Alloy, BMX Style, Bar bore 1.25in, Length 25.98in, Rise 4.72in Stem Alloy, Barboe 1.13in x 1.25in, Folding, Extension Tube 7in
• Saddle Comfortable Big Vacuum Foaming Seat SeatPost Alloy 1.25in x 19.69in Length
• Chainwheel Alloy Crank 6.69in, Steel Chain Ring 36T
• Freewheel 18T

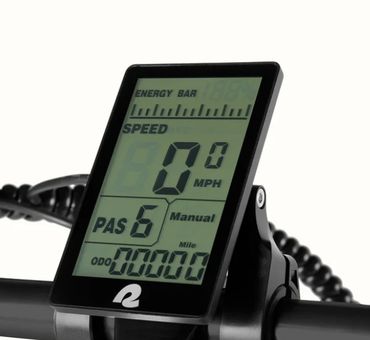

• Display Multifunctional G51, LCD Gray Screen
• Brake Hydraulic Disc Brake, Alloy, Rotor 7.09in Brake Level Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function Rim Alloy 20 Inch x 30 x 13G x 36H, AV
• Tire 20" x 3.0 CHAOYANG H5183
• Spokes Stainless, 13G

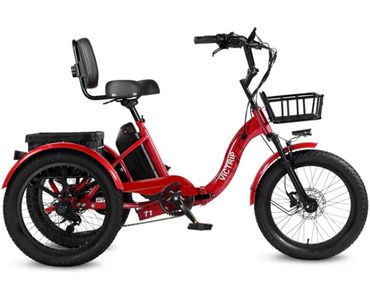

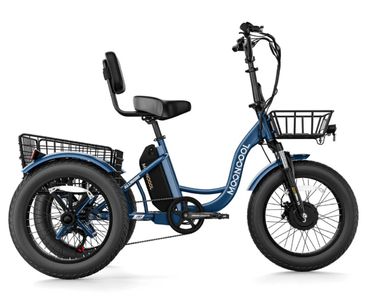

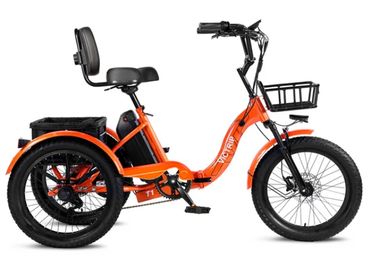

 Specifications:

Pedal Assist Range --80 Miles

Electric-Only Range --45 Miles

Top Speed --20 Mph

Max Load Capacity --450 Lbs

Ebike Net Weight --N.W.92Lbs

Torque --80 Nm

Battery --960Wh (48V20Ah) UL2271 Compliant

Display --Smart LED Display

PAS Levels --0-5

Throttle --Full throttle

Motor --1000W peak High Speed Motor

Sensors --Speed Sensor

Freewheel --Single speed flywheel

Controller --Sine Wave 48V 20amp Peak

Differential --Single disc brake

Chainwheel --42T Chainring

Charging Time --7 Hours

Battery Weight --8.6 Lbs

Charger --100-240V, 54.6V-3A

Rim --Alloy 20"3.0"13G36H

Spokes --13G

Tire Brand --JILUER

Tire Size --20"x3.0"

Brake Levers --Aluminum w/ Brake Priority

Brakes --Front & Rear Hydraulic Disc Brake

Brake Rotors --160mm

Frame --High Carbon Steel

Assembly --92%

Grip --Soft PVC Rubber

Seat Post --28.6*300MM*1.4T

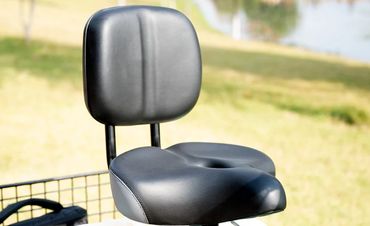

Saddle --Seat with backrest

Colors --4 Colors

Front Suspension --Adjustable Aluminum Shock

Pedals --9/16", With Reflectors

Chain --126T-48T

Crank Set --152mm Crank Arms,42T Chainring

Parking Brake --With

Fenders --With

Front Basket --With

Rear Basket --With

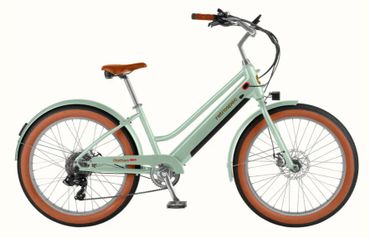

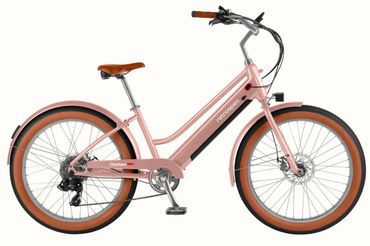

Specifications:

 Frameset

• Sizes 16" Step Through
• Material Alloy
• Dropouts 1x rear fender eyelets, rear rack mounts,
• Replaceable Der Hanger Yes
• Fork Rigid Steel

Wheelset

• Rims Alloy 36H for disc brake
• Hubs Alloy bolt on 17mm nut
• Spokes 13G w/brass nipples
• Tires 26x3.0 with Puncture Protection

E-Power System

• Motor48V/500W Geared
• Drive Mode PAS/Thumb Throttle Left Side, Cadence Sensor
• Display Full Color Center Mounted TFT
• Charge Time (empty to full ) Approximately 5-6hrs hrs.
• Range 75 miles

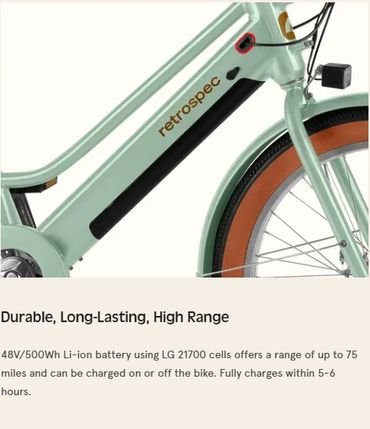

• Battery 500Wh/48VLG 21700 cells; Charge on or off bike
• UL Testing UL2849 & UL2271 Certified
• Pedal Assist 1-4 PAS, Throttle and Walk-Mode

Drivetrain

• Derailleur - Rear Shimano Tourney 7 speed
• Shifter(s) Shimano Tourney 7 speed
• Crankset 3-Piece Aluminum
• Chain KMC 7 Speed
• BB Sealed Cartridge
• Freewheel/Cog Shimano 7 Speed 14-34T

Components

• Headset 1-1/8" Semi-Integrated Threaded
• Brakes 5 Star Lever; Tektro Mechanical Caliper w/ Tektro Anti-Vibration 180mm Rotors and Semi-Metallic Pads
• Handlebars Alloy Cruiser
• Grips Lock-On Comfort
• Stem Die-Cast Alloy. 25.4mm Clamp
• Saddle Selle Royal Gel Saddle
• Seat post Aluminum 30.9mm Diameter, 350mm Length
• Seat post Clamp Alloy QR
• Pedals PP Platform w/ Non-Slip Tread

Extras

• Kickstand Aluminum Chain stay Mounted, 40mm Bolt Pattern
• Headlight Integrated Front 80 Lux 12V
• Rear Light Fender Mounted Taillight with Integrated Reflector and Brake Light Function
• Chain cover Full Coverage
• Recommended Weight Limit350lbs

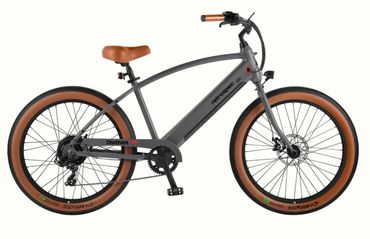

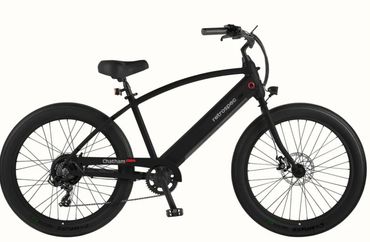

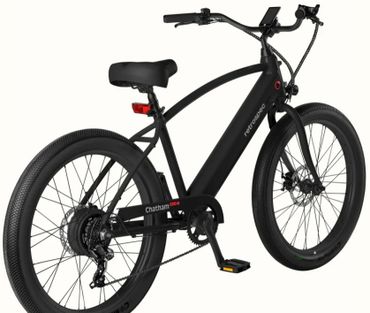

Specifications:

 Frameset

• Sizes18" Step Over
• Material Aluminum, 6061
• Replaceable Der Hanger Yes
• Fork Rigid Steel

Wheelset

• Rims 26" Single-Wall Aluminum 36H, for Disc Brake
• Hubs Alloy bolt on 17mm nut
• Spokes13G w/brass nipples
• Tires26x3.0 with Puncture Protection

E-Power System

• Motor48V/500W geared
• Drive Mode PAS/Thumb throttle Left side, cadence sensor
• Display Full Color TFT Center Mounted
• Charge Time Approximately 5-6hrs hrs.
• Range52+ miles
• Battery500Wh/48VLG 21700 cells; Charge on or off bike, UART BMS
• UL TestingUL2849 & UL2271 Certified
• Pedal Assist1-4 PAS, Throttle and Walk-Mode

Drivetrain

• Derailleur - Rear Shimano Tourney 7 speed
• Shifter(s)Shimano Tourney 7 speed
• Crankset3-Piece Aluminum
• Chain KMC 7 speed
• BB Sealed Catridge
• Freewheel/Cog Shimano 14-34T

Components

• Headset Semi-Integrated Threaded, 1 1/8"
• Brakes5 Star Lever with Integrated Bell; Tektro Mechanical Caliper with Tektro Anti-Vibration 180mm Rotors and Semi-Metallic Pads
• Handlebars Alloy cruiser
• Grips Lock-on Comfort
• Stem Alloy quill
• Saddle Selle Royal Gel Saddle
• Seat post Aluminum 30.9 Diameter, 350mm Length
• Seat post Clamp Alloy QR
• Pedals PP Platform with Non-Slip Tread

Extras

• Kickstand Aluminum Chain stay Mounted, 40MM Bolt Pattern
• Light(s) Integrated/System Operated Front and Rear Light with Brake Function
• Chain cover Full Coverage
• All-In-One Tool Included 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
• Recommended Weight Limit 350lbs

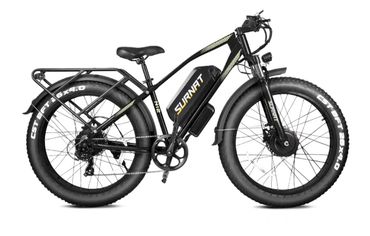

 PERFORMANCE

• Top Speed ：30MPH
• RANGE THROTTLE: 50miles
• PAS RANGE: Up to 80+ Miles
• Charge Time : 4-5hrs
• Battery : 1080Wh (48V 22.5Ah)
• Motor : 2000w（peak3000W）
• Charger: Lithium battery charger 48V3A
• Controller: 48V, 18A current limit
• Suspension： Front Adjustable
• Torque: 170NM
• Throttle: Half Turn Handle
• Gearing & Rear Derailleur: 7 speed
• MAXIMUM CLIMBING DEGREE: 40°-45°
• WATERPROOF RATES: IP65 Waterproof, Including Motor Battery, Display and Wiring
• RIDING MODE: pure electric mode, power-assisted mode, pedal mode, walking mode

FRAMESET

• Frame ： High Carbon Steel
• Inner Tubes ：26" x 4.0"
• CHAIN: 118 Segments
• RIMS: 26-inch
• BRAKES: 180mm x 2.3mm front and rear hydraulic brakes

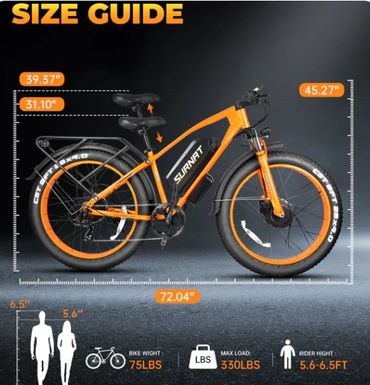

• EBIKE Weight：75 lbs
• Battery Weight:12 lbs
• Package Weight: 87lbs
• Rider Weight Limit：330lbs
• Recommended Rider Height :5'6"-6'5"
• Seat Height ：31"-40"

The N12 All Terrain E-bike combines power and versatility with 1000W*2 AWD dual motor system, 170Nm torque, and a 48V 22.5Ah removable battery for long-distance and off-road adventures. With a top speed of 30 MPH, 45° climbing angle, and Shimano 7-speed gear system, it conquers any terrain effortlessly. Durable and adaptable, the N12 dual motor e-bike is perfect for riders seeking performance and adventure.
